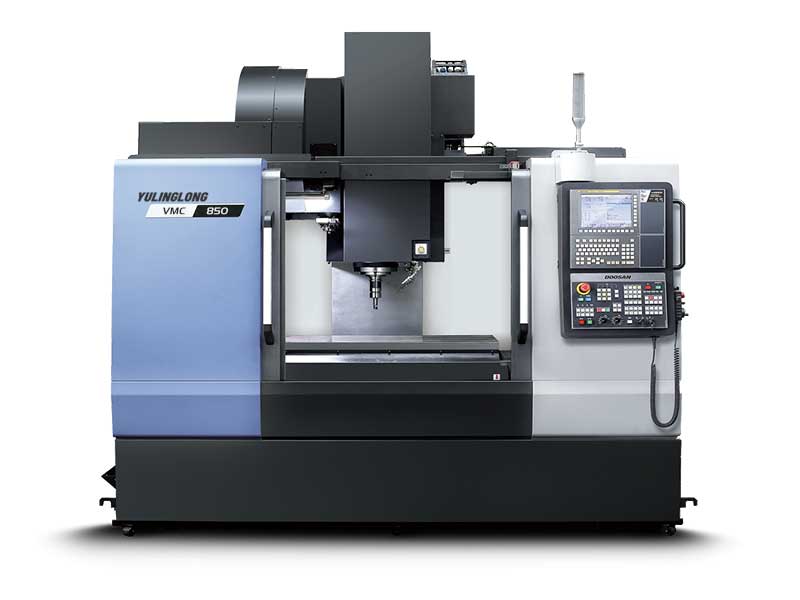

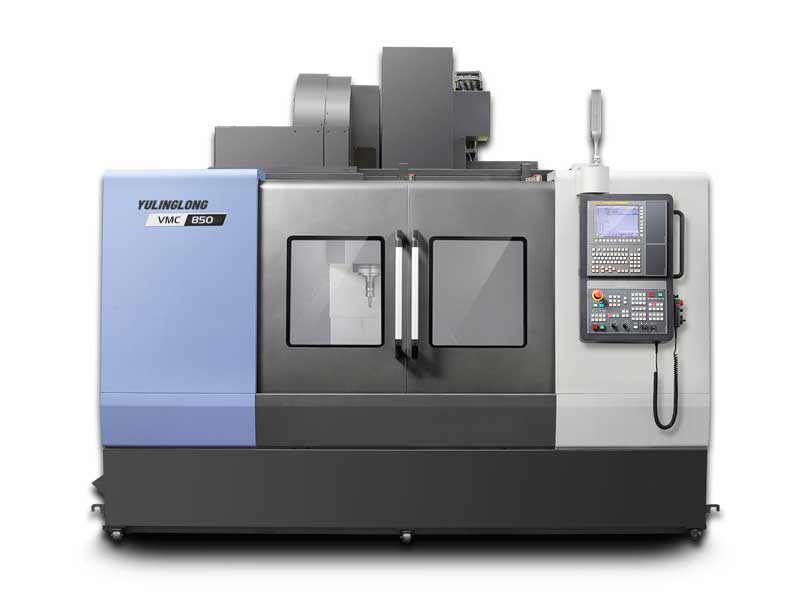

VMC850加工中心采用独特设计，零件经过一次装夹后可完 成铣、镗、钻、扩、铰、攻丝等多工序加工，具有高精度、高自动化、高可靠、机电一体化程度高、操作简单、整体造型美观大方等特点。
...VMC850加工中心技术参数：
| 技术参数Specifications | Units | VMC850 |

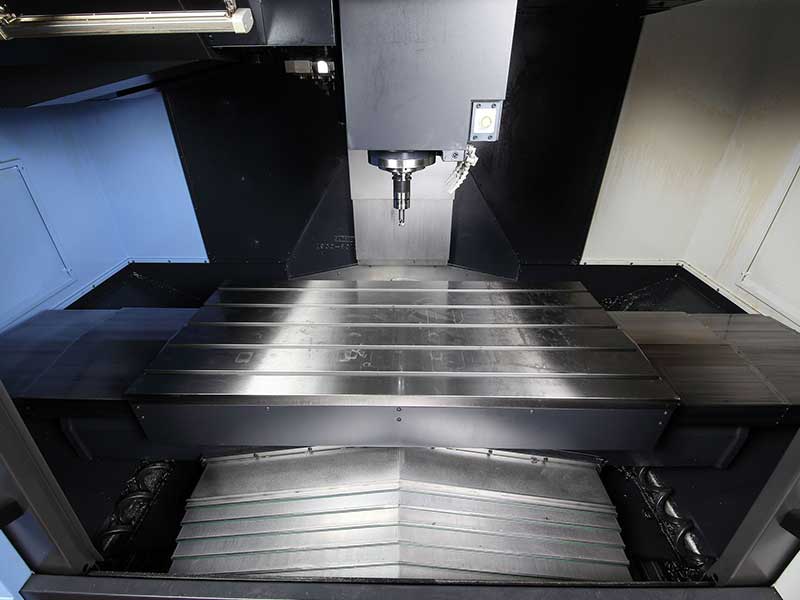

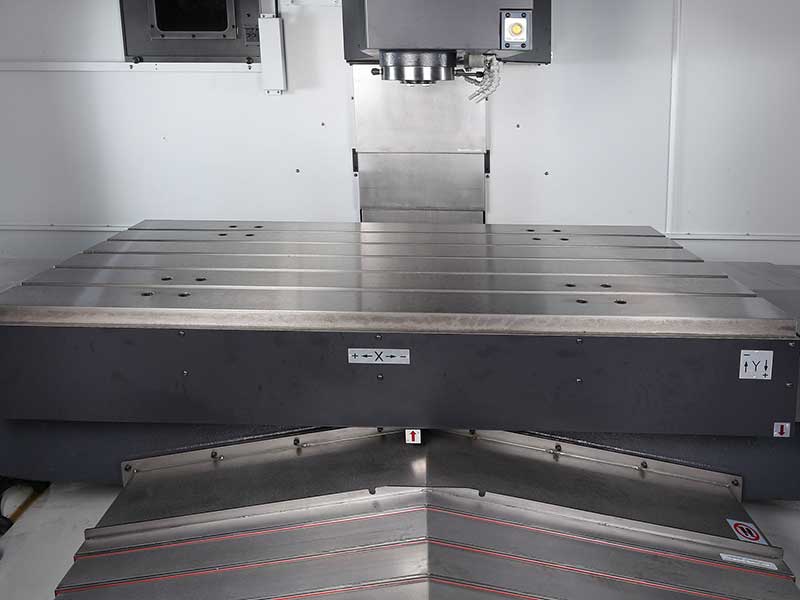

| 工作台尺寸Table size | mm | 1000x500 |
| X轴行程X axis travel | mm | 800 |
| Y轴行程Y axis travel | mm | 500 |
| Z轴行程Z axis travel | mm | 500 |
| 工作台最大承重Max.Worktable load | kg | 500 |
| T型槽(数量-宽度-间隙)T slot(number-width-pitch) | 5-18x100 | |
| 主轴转速Max.Spindle speed | rpm | 8000(Optional:10000) |
| 主轴锥度Spindle taper | mm | BT40 |
| 主电机功率Main motor power | kW | 7.5/11 |
| X/Y/Z轴快移速度X/Y/Z rapid traverse speed | m/min | 24/24/20(Optional:48/48/36) |
| 切削进给速度Cutting feed speed | mm/min | 1-8000 |
| 导轨形式Guide rail type | 线轨Linear rail | |
| 主轴中心到立柱表面距离 | mm | 525 |
| Distance from spindle axis to column surface | ||
| 主轴端部到工作台表面距离 | mm | 130-630 |
| Distance between spindle nose and worktable surface | ||
| 定位精度Positioning accuracy | mm | ±0.0075 |
| 重复定位精度Repeat positioning accuracy | mm | ±0.005 |

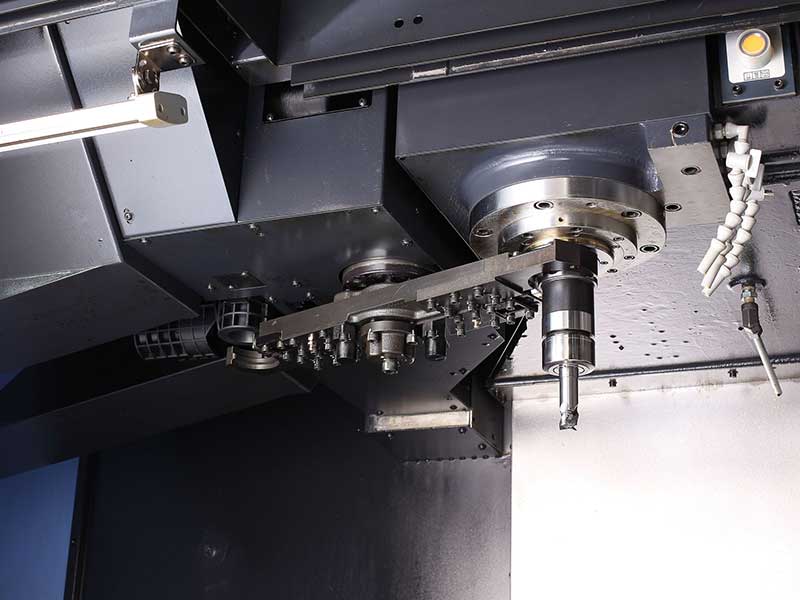

| 刀库Tool magazine | 圆盘Arm 24 | |
| 刀具最大直径Max.Tool diameter | mm | Φ78(邻刀Adjacent)/Φ120(空刀Apart) |
| 刀具最大重量Max.Tool weight | kg | 8 |
| 机床重量Machine weight | kg | 5600 |
| 外形尺寸Overall dimension | mm | 2600x2300x2800 |
